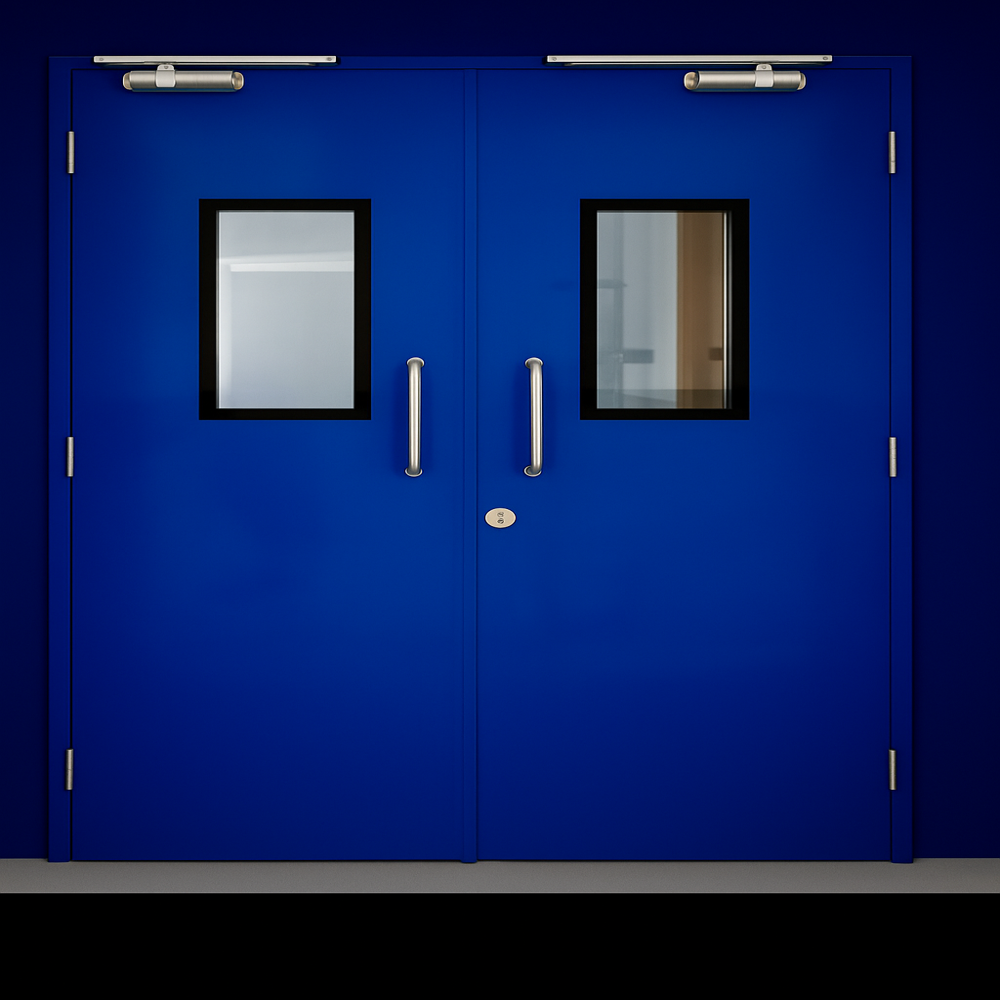

Clean Room Double Door

Name: Clean Room Double Door
Brand: DOORWIN ENGINEERING
Price: 15000.0 INR
Availability: InStock

Price 15000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Clean Room Double Door Specification

Air Flow
Suitable for controlled environments

Type
Swing Double Door

Floor
Compatible with epoxy and PVC floorings

Thickness
45 mm

Door
Double Leaf

Frame Material
Stainless Steel 304

Feature
Flush design, smooth finish, GMP compliant

Material
Powder-coated GI / CRCA Sheet

Lighting
Not included

Application
Clean Room Entry and Exit

Dimension (L*W*H)
Customizable as per requirement

Condition
New

Power Consumption
No direct power consumption

Weight
Approx. 40-60 kg per leaf

Opening Direction
Customizable - left, right, or double swing

Glass View Panel
Toughened glass vision panel integrated

Sound Insulation
High due to solid core and sealing

Surface Finish
Anti-static, smooth powder coating

Installation
Panel or wall mounting supported

Fire Resistance
Optional fire-rated version available

Sealing
EPDM / PVC gaskets for air tightness

Locking Mechanism
Keyed or electronic lock optional

Hinges
Concealed or stainless steel heavy-duty hinges

Operation
Manual or automatic options available

Handle Type
Stainless steel lever or D-type handles

Clean Room Double Door Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
100 Pieces Per Month

Delivery Time
1 Months

Main Domestic Market
All India

About Clean Room Double Door

Clean room doors are specially designed doors used in controlled environments where airborne particles, contamination, temperature, humidity, and pressure must be strictly regulated. These doors help maintain the cleanliness and integrity of clean rooms used in industries such as pharmaceuticals, biotechnology, electronics, hospitals, food processing, and laboratories.

Superior Airtight Sealing and Hygiene

The door features a neoprene gasket for secure airtight sealing, essential for maintaining contamination-free environments. Its antibacterial powder coating and flush finish help meet GMP standards, making it ideal for cleanroom installations requiring high hygiene levels.

Durable and Versatile Construction

Manufactured with a powder-coated GI/CRCA sheet and a robust SS 304 frame, the double door's tough structure withstands demanding use. Optional features like toughened glass, hydraulic closers, and mortise locks offer flexibility, while compliance with cleanroom protocols ensures safety and reliability.

Customization for Every Requirement

Customizable in dimension, color, thickness, and operation, this double swing door adapts to unique facility needs. The door integrates smoothly with epoxy or PVC floors and can be wall mounted or flush with partitions, providing seamless compatibility and easy installation for site-specific requirements.

FAQ's of Clean Room Double Door:

Q: How is airtight sealing ensured in the Clean Room Double Door?

A: Airtight sealing is achieved with a high-quality neoprene gasket around the door edges, preventing the ingress or egress of contaminants, dust, or particulates, which is crucial for cleanroom standards.

Q: What materials are used in the door's construction and why?

A: The door uses powder-coated GI/CRCA sheet for the panel and stainless steel 304 for the frame. This combination provides strength, corrosion resistance, and longevity, while the antibacterial coating minimizes microbial growth.

Q: When should optional features like the hydraulic door closer or fire rating be considered?

A: Optional features such as hydraulic door closers and fire ratings should be chosen based on your facility's safety requirements and operational workflow. These additions can enhance security, convenience, and compliance with specific building codes.

Q: Where is the Clean Room Double Door typically installed?

A: This door is primarily installed at the entry and exit points of cleanrooms in pharmaceutical, food, laboratory, or electronics manufacturing units, where controlled and hygienic environments are essential.

Q: What is the process for customizing the door to specific requirements?

A: You can specify dimensions, thickness, color, and optional accessories at the time of ordering. The manufacturer adjusts the door fabrication process to meet your exact requirements, ensuring a perfect fit and function.

Q: How does the glass view panel benefit cleanroom operations?

A: The optional toughened glass view panel provides clear visibility between rooms without the need to open the door, reducing air exchange and maintaining the controlled environment, thus enhancing both safety and workflow efficiency.

Q: What is the main advantage of using this door in controlled environments?

A: The primary advantage is the door's ability to maintain airtightness, cleanliness, and acoustic insulation while being easy to customize and install, ensuring long-term reliability and compliance with industry standards.
